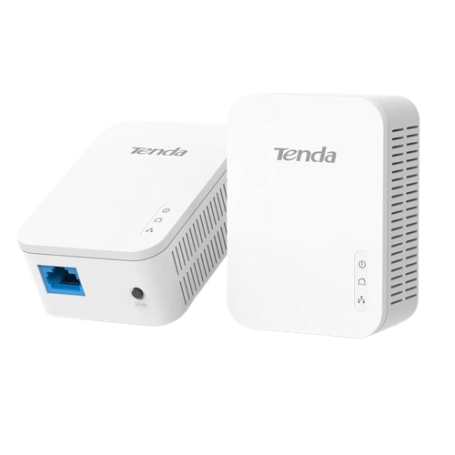

Tenda PH3 AV1000 Gigabit Powerline Adapter

Description

⚡ Seamless Wired Connectivity with Tenda PH3 AV1000

The Tenda PH3 AV1000 Gigabit Powerline Adapter Kit offers a fast, stable, and plug-and-play solution for extending your network through existing electrical wiring. Designed for homes and offices where WiFi signals struggle to penetrate walls or floors, this kit delivers up to 1000Mbps data rates—ideal for UHD streaming, online gaming, and large file transfers.

🔌 Hardware & Interface

• Ethernet Ports: Each unit includes two 10/100/1000 Mbps RJ45 ports for high-speed wired connections to PCs, smart TVs, or gaming consoles.
• Button: A single Pair/Reset button simplifies setup and troubleshooting.
• LED Indicators: Three LEDs display power status, powerline connection, and Ethernet activity.
• Power Input: Operates on AC100–240V, 50/60Hz with a maximum power draw of just 3.2W.
• Compact Design: Each adapter measures 82mm × 60mm × 32mm, fitting discreetly into any outlet.

🌐 Performance & Standards

• Data Rate: Up to 1000Mbps over powerline
• Frequency Range: 2–86MHz
• Standards Supported: HomePlug AV2, IEEE 802.3, 802.3u, 802.3ab
• Transmission Technology: Uses advanced modulation for reliable signal over long distances

🛡️ Security & Certification

• Certifications: CE, FCC, RoHS compliant for safety and environmental standards
• Plug Types: Available in US, EU, UK, and AU formats for global compatibility

📦 Package Contents

• 2 × AV1000 Gigabit Powerline Adapters
• 2 × Cat5e Ethernet Cables
• 1 × Quick Installation Guide

Setup is effortless—just plug both adapters into wall sockets, press the Pair button, and enjoy high-speed connectivity without running new cables.

🌡️ Environmental Tolerance

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity Range: 10–90% RH operating, 5–90% RH storage

🔁 Compatible Models

The PH3 kit integrates smoothly with other Tenda powerline products such as PH5, PH6, and PH10, allowing flexible expansion across your network.
