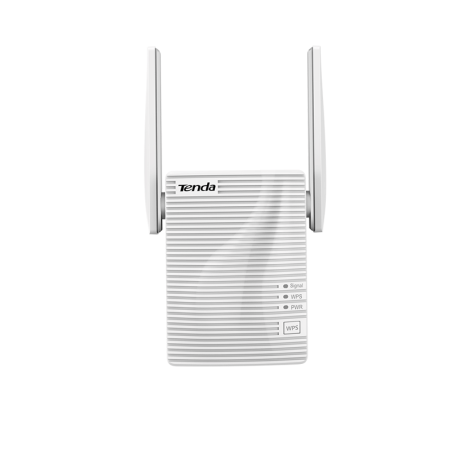

Tenda A18 AC1200 Wireless Range Extender

Description

⚡ Dual-Band WiFi Expansion with Tenda A18 AC1200

The Tenda A18 AC1200 Dual Band WiFi Repeater is engineered to eliminate weak signal zones and extend wireless coverage across your home or office. Supporting both 2.4GHz and 5GHz bands, it delivers combined speeds of up to 1200Mbps, ensuring smooth streaming, gaming, and browsing experiences. With its compact design and powerful dual antennas, the A18 is ideal for users seeking reliable, high-speed connectivity without the hassle of complex setup.

📡 Hardware & Connectivity

• Interfaces: Equipped with one 10/100Mbps RJ45 Ethernet port for wired connections.
• Antennas: Two external 2dBi dual-band omni-directional antennas provide stable and wide-range signal transmission.
• Buttons: Includes a WPS button for one-touch pairing and a reset button for quick troubleshooting.
• LED Indicators: Separate LEDs for signal strength, WPS status, and power make monitoring easy.
• Power Supply: Built-in 9V0.8A adapter with a maximum power consumption of 5.2W.
• Dimensions: Compact footprint at 80mm × 58mm × 48mm (L × W × H).

🌐 Wireless Performance

• Standards Supported: IEEE802.11b/g/n/a/ac
• Frequency Bands: Dual-band operation on 2.4GHz and 5GHz
• Data Rates:
  • 2.4GHz: Up to 300Mbps
  • 5GHz: Up to 867Mbps
• RSSI Sensitivity:
  • 2.4GHz: -97dBm to -72dBm across modes
  • 5GHz: -95dBm to -63dBm across modes
• Transmission Power: Less than 20dBm

🔐 Security & Modes

• Wireless Modes: Supports both Repeater Mode and Access Point Mode
• Encryption: Mix WPA-PSK/WPA2-PSK with TKIP algorithm for secure connections
• Certifications: CE, FCC, RoHS compliant
• Plug Types: Available in US, EU, UK, BR, AU, and AR formats

📦 Package & System Tools

• Contents:
  • 1 × AC1200 Dual Band WiFi Repeater
  • 1 × Quick Installation Guide
• System Tools: Firmware upgrade, factory reset, password management, and reboot options

🌡️ Environmental Tolerance

• Operating Temperature: 0℃ to 40℃
• Storage Temperature: -40℃ to 70℃
• Humidity: 10–90% RH, non-condensing

🔁 Compatible Models

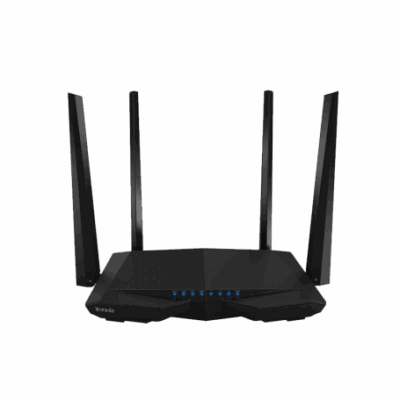

Works seamlessly with other Tenda routers such as AC6, AC8, AC19, and AC21, making it a versatile addition to any network setup.
