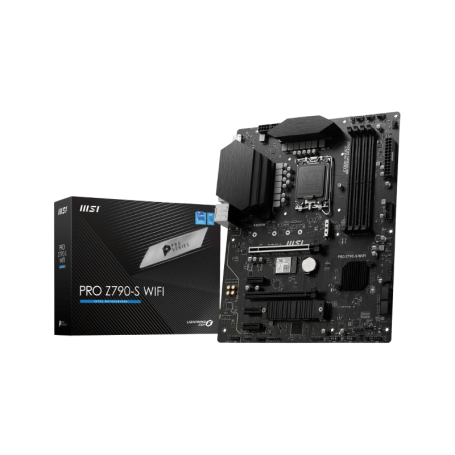

Msi Pro Motherboard Z790-S DDR5 Lga1700

In Stock

235 $

In Stock

Add to Wishlist

Compare

5 Days Delivery

Wakilni - Fast Reliable Courier Service

Category: Motherboard

-Part Number: 911-7D88-008
–CPU: Intel Socket LGA 1700 for 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron Processors
–Memory: 4 x DIMM, Max. 256GB, DDR5
–Graphic: 1 x HDMI 1.4b, 1 x DISPLAY PORT
–Expansion: 2 x PCIe 3.0 x16, x 3 PCIe 3.0 x1
–Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
–Audio: 1*F Audio, 7.1-Channel High Definition Audio
–LAN: Realtek® RTL8125BG 2.5Gbps
–Form Factor Micro ATX 24.4 cm x 24.4 cm

Description
Reviews (0)

Description

🧠 High-End Platform for Intel Performance

The MSI PRO Z790-S DDR5 LGA1700 motherboard is built to support the latest Intel® processors, including 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® CPUs. Powered by the Intel Z790 chipset, it offers advanced connectivity, robust power delivery, and future-ready features for demanding users. Its LGA1700 socket ensures compatibility with high-performance desktop builds, whether for gaming, content creation, or professional workloads.

⚡ DDR5 Memory and Overclocking Support

Equipped with 4 DDR5 DIMM slots, the board supports up to 256GB of high-speed memory. It handles frequencies up to 6600+ MHz (OC) and supports Intel® XMP 3.0 for easy overclocking. The dual-channel architecture and support for non-ECC, unbuffered memory ensure stable performance across multitasking and intensive applications.

🎮 PCIe Expansion and Graphics Output

The board includes:

2 × PCIe x16 slots (one Gen 5.0 from CPU, one Gen 3.0 from chipset)
3 × PCIe x1 slots (Gen 3.0 from chipset)

Graphics output options:

1 × HDMI™ 1.4 with HDR and up to 4K at 30Hz
1 × DisplayPort 1.4 supporting up to 4K at 60Hz

Note: Graphics output depends on the installed processor’s integrated GPU.

💾 Storage and RAID Configuration

Storage options include:

2 × M.2 slots
- M.2_1 (from CPU): PCIe 4.0 x4, supports up to 22110
- M.2_2 (from chipset): PCIe 4.0 x4 / SATA mode
4 × SATA 6Gb/s ports
RAID support: 0, 1, 5, and 10

This setup allows users to combine ultra-fast NVMe SSDs with traditional SATA drives for flexible storage solutions.

🔌 USB, Audio, and Networking

Connectivity includes:

10 × USB Type-A ports (8 × 5Gbps, 2 × USB 2.0)
1 × USB Type-C 20Gbps port
Realtek® RTL8125BG 2.5Gbps LAN
Realtek® ALC897 7.1-channel HD audio with S/PDIF output

📡 Wireless Connectivity and Internal I/O

The board features Intel® Wi-Fi 6E and Bluetooth® 5.3, pre-installed in the M.2 Key-E slot. It supports MU-MIMO and tri-band operation (2.4GHz / 5GHz / 6GHz), delivering speeds up to 2.4Gbps.

Internal headers include:

ATX and dual CPU power connectors
CPU, pump, and system fan headers
RGB LED and TPM 2.0 headers
Front panel, audio, chassis intrusion, and USB headers

Msi Pro Motherboard Z790-S DDR5 Lga1700 911-7D88-008
Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
	LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB
	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 6600+ MHz
	• 1DPC 2R Max speed up to 6400+ MHz
	• 2DPC 1R Max speed up to 6000+ MHz
	• 2DPC 2R Max speed up to 5600+ MHz

	Supports Intel® XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™
	Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot
	3x PCI-E x1 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec
	7.1-Channel High Definition Audio
	Supports S/PDIF output
Storage	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	4x USB 5Gbps Type A (Rear)
	4x USB 5Gbps Type A (Front)
	1x USB 20Gbps Type C (Rear)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	4x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E
	The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax

	Supports Bluetooth® 5.3, FIPS, FISMA

	* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
	** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
