-Part Number: 90MB1300-M0EAY0
–CPU: Intel Socket LGA 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
–Memory: 4 x DIMM, Max. 128GB, DDR4
–Graphic: 1 x HDMI 1.4b, 1 x DisplayPort 1.4
–Expansion: 1 x PCIe 3.0 x16, x PCIe 3.0 x16, x PCIe 3.0 x1
–Storage: Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
–Audio: 1*F Audio, three-in-one HD port
–LAN: Intel® I225-V 2.5Gb Ethernet
–Form Factor Micro ATX 24.4 cm x 24.4 cm

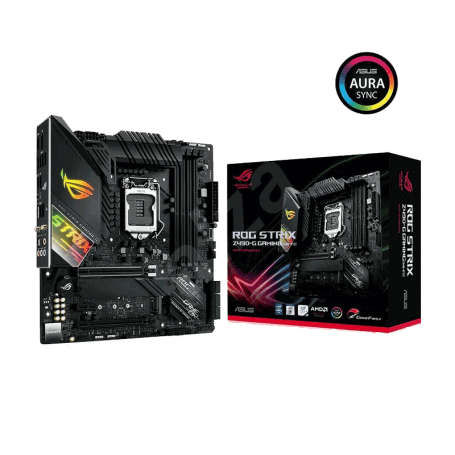

The ASUS ROG STRIX Z490-G GAMING (Wi-Fi) motherboard is engineered for 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, built on the LGA1200 socket and powered by the Intel® Z490 chipset. It supports Intel® Turbo Boost Technologies and 14nm CPUs, making it ideal for high-performance gaming and productivity builds. With its micro-ATX form factor, it balances compact design with robust feature integration.
Equipped with 4 DIMM slots, the board supports up to 128GB of DDR4 memory at speeds reaching 4800MHz (OC). Thanks to OptiMem II technology, signal integrity is improved for better stability and overclocking headroom. Whether you’re gaming, streaming, or multitasking, memory performance remains responsive and reliable.
For graphics and expansion, the board includes:
It supports AMD 2-Way CrossFireX, allowing multi-GPU configurations for enhanced rendering and gaming performance.
Storage options include:
The board supports RAID 0, 1, 5, and 10, along with Intel® Optane™ Memory, enabling fast boot times and efficient data access.
Rear I/O ports include:
Internal headers support additional USB ports, RGB lighting, and fan control, making it easy to customize and expand.
Audio is powered by ROG SupremeFX S1220A, delivering 8-channel HD sound, dual OP amplifiers, and premium Japanese capacitors. Features like Sonic Studio III, DTS® Sound Unbound, and Sonic Radar III enhance immersion and clarity.
The board includes:
Bundled accessories include a Wi-Fi antenna, ROG keychain, and M.2 screw kit, rounding out a premium experience.
| ROG STRIX Z490-G GAMING (WI-FI) | |
| CPU | Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Supports Intel® 14nm CPU |
| Chipset | Intel® Z490a |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.) /3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered MemoryOptiMem II |
| Graphic | 1 x HDMI 1.4b * 1 x DisplayPort 1.4 ** **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. *Graphics specifications may vary between CPU types. |
| Integrated Graphics Processor | Integrated Graphics Processor |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 1 x PCIe 3.0 x16 (max at x4 mode) *2 1 x PCIe 3.0 x16 (x16 mode) *1 Intel® 10th Gen Processors Intel® Z490 Chipset 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel® Z490 Chipset : | 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| LAN | Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| 5-Way Optimization with AI Overclocking | TPU EPU Digi+ VRM Xpert 4 Turbo app – EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey |
| audio Cover | ROG SupremeFX8-Channel High Definition Audio CODEC S1220A – Dual OP Amplifiers – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality120dBSNR stereo playback outputand113dBSNR recording input – Supports up to 32-Bit/192kHz playback * Audio Feature : – SupremeFX Shielding™ Technology – Optical S/PDIF out port(s) at back panel * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| Accessories | 1 x M.2 SSD screw package(s) 1 ROG key chain 1 x Wi-Fi moving antenna 1 x 2-in-1 Rubber pad User´s manual |
| ASUS Special Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors – ON-semi NCP302045 – MicroFine Alloy Choke ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink – Aluminum heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Procool II – Pre-mounted I/O shield – SafeSlot AURA Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) |
| Audio | Premium Japanese audio capacitors |
| Back I/O Ports | 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 1 x Intel® I225-V 2.5Gb Ethernet 1 x USB BIOS FlashBack™ Button(s) 4 x USB 3.2 Gen 1 Type-A 1 x DisplayPort 1 x HDMI 2 x USB 2.0 1 x Optical S/PDIF out 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks |
| Bluetooth | Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Internal I/O Ports | 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x VRM_HS_FAN Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x CPU OV 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) |
| Software Features | ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 |
| USB Ports | 1 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®) Rear USB Port ( Total 8 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 7 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 2 x USB 2.0 port(s) 4 x USB 2.0 port(s) |
| Wireless Data Network | Intel® Wi-Fi 6 AX201 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports CNVI interface Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 |
